#D1D3D4 NX030 Neutral Density Filter - Low Reflectivity 50% Transmission

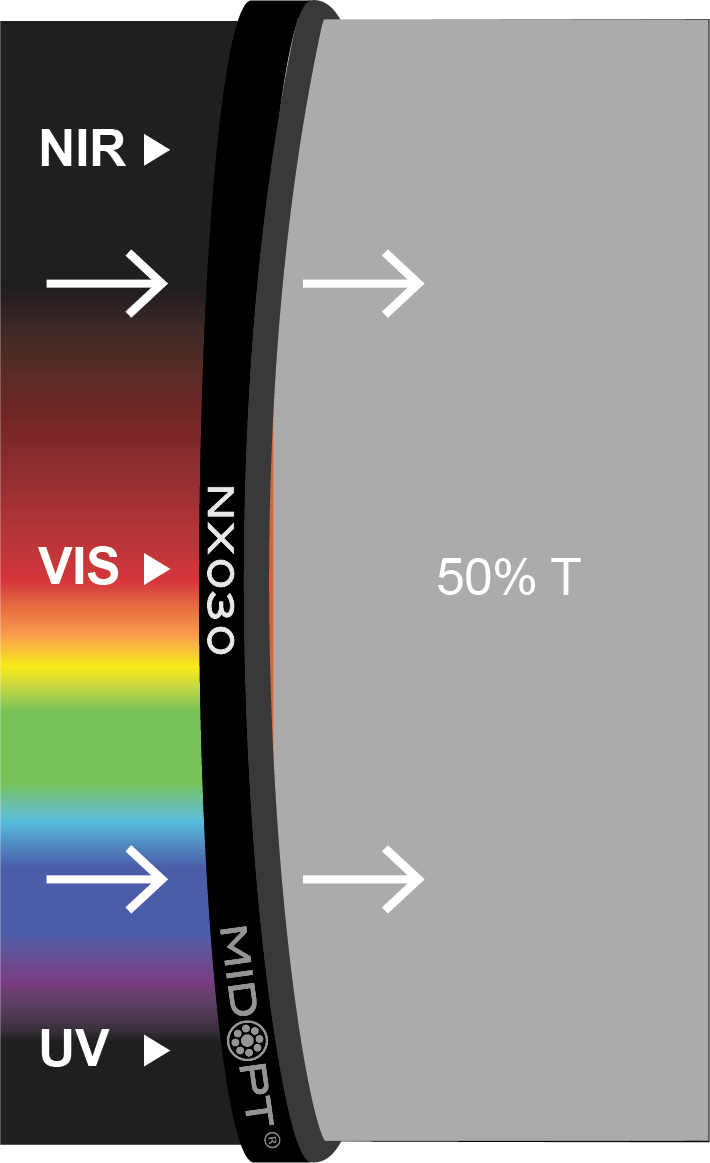

The NX030 Neutral Density Filter offers reliable, uniform attenuation across the visible (VIS) through short-wave infrared (SWIR) spectrum (400–2000nm), making it an ideal choice for use with CMOS, InGaAs and CQD cameras. It transmits approximately 50% of light across all wavelengths while reflecting less than 3% back toward the source, minimizing glare and enhancing image consistency in multi-spectral applications.

Built on precision-polished glass for consistent thickness and superior optical quality, the NX030 offers reliable performance with a clean, neutral gray-black finish. Its discreet appearance also helps minimize stray reflections – important for sensitive or covert imaging environments.

NX filters are housed in a threaded metal ring with matching male and female threads, allowing easy stacking to achieve custom attenuation levels. For added versatility, NX filters are also available as custom-cut pieces up to 165mm square for integration with broadband light sources or large-format optics.
